Предмет: Физика, автор: keno28

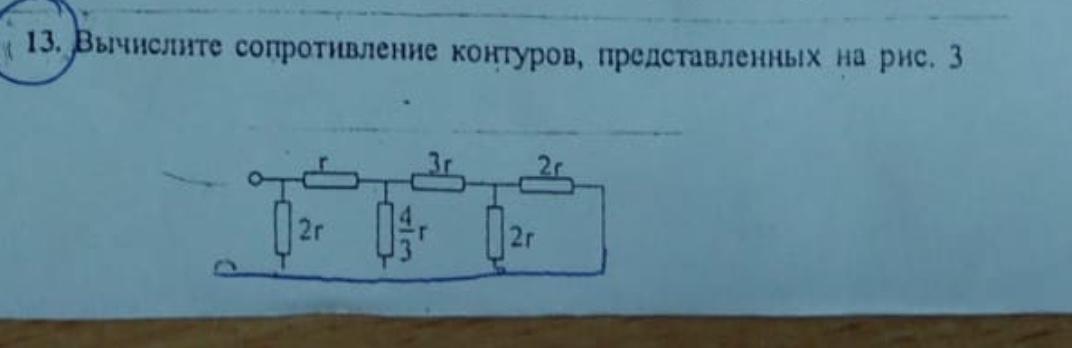

Добрые люди, помогите найти общее сопротивление проводников

Приложения:

Ответы

Автор ответа: reyzuu

Ответ:

R=10,2 Ом

Объяснение:

Ro1=r+3r+2r=6 Ом

Ro2=1/2r+4/3r+2r=4,2 Ом

Ro3=4,2r+6r=10,2 Ом

вроде так
