Предмет: Физика, автор: danya48055

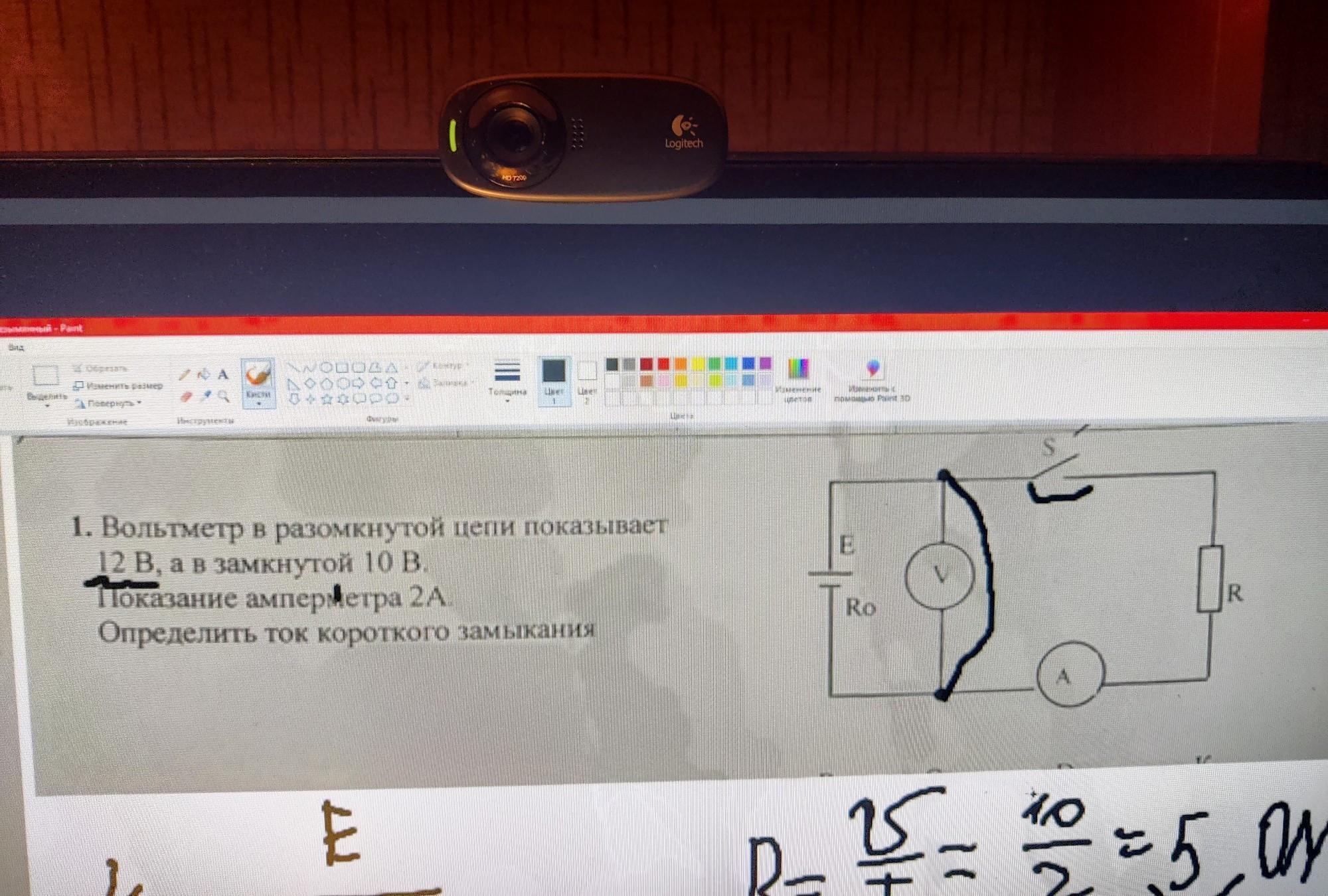

Определить ток короткого замыкания ​

Приложения:

Ответы

Автор ответа: zinovicgrigorij
0

Ответ: 12А

Объяснение:

Дано:

E=12В

U=10В

I=2А

----------

Iкз-?

Iкз=E/r

I=E/(R+r)

R=U/I=10/2=5 Ом

Е=IR+Ir

r=(E-IR)/I=(12-2*5)/2=1 Ом

Iкз=12/1=12А
