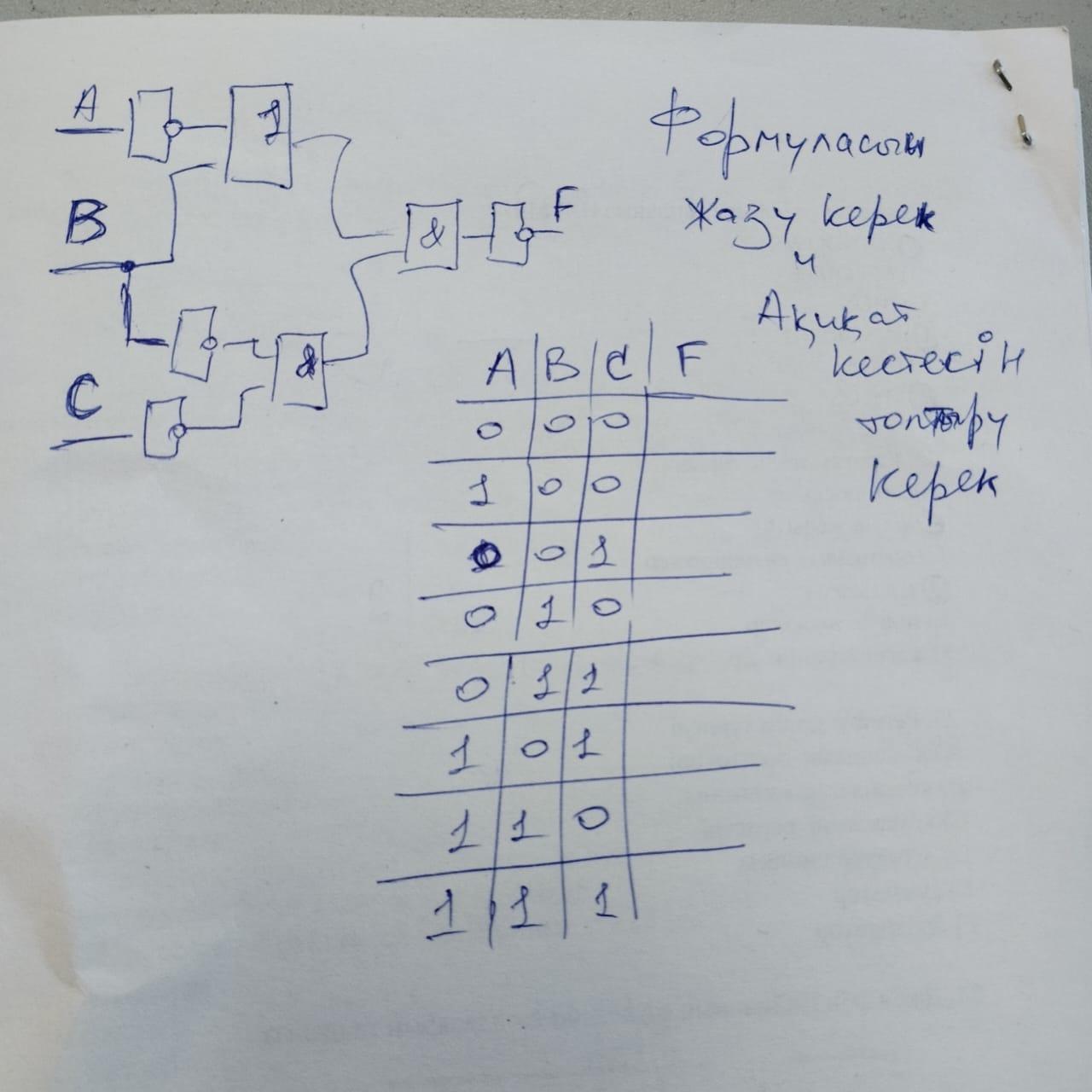

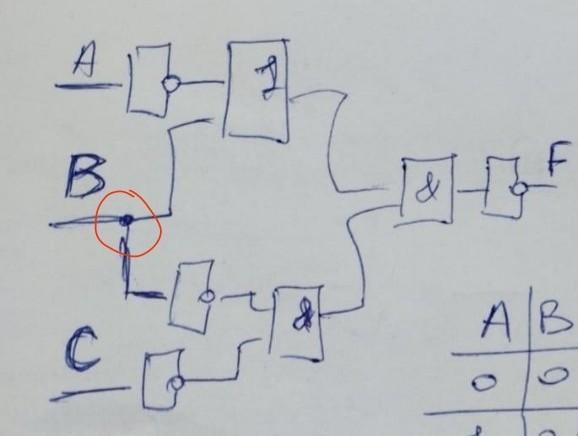

Что это за точка после буквы B?

Answer:

In digital diagrams, the connection of one wire to another is typically represented by a junction or a "dot" where the wires cross or intersect. The dot is usually placed at the point of intersection and is labeled with a numeric or alphabetic identifier to indicate that the two wires are connected at that point.
